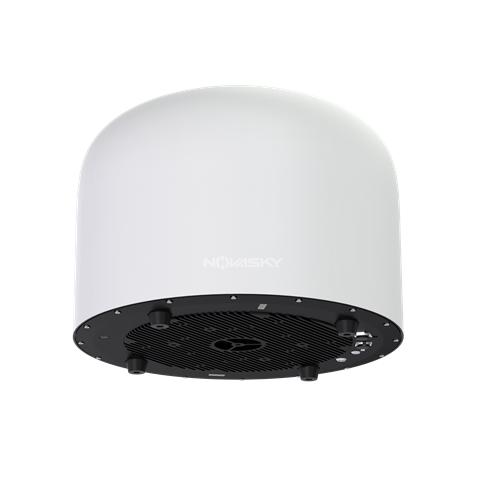

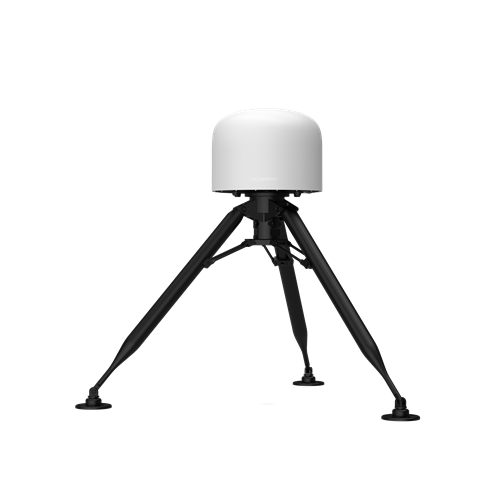

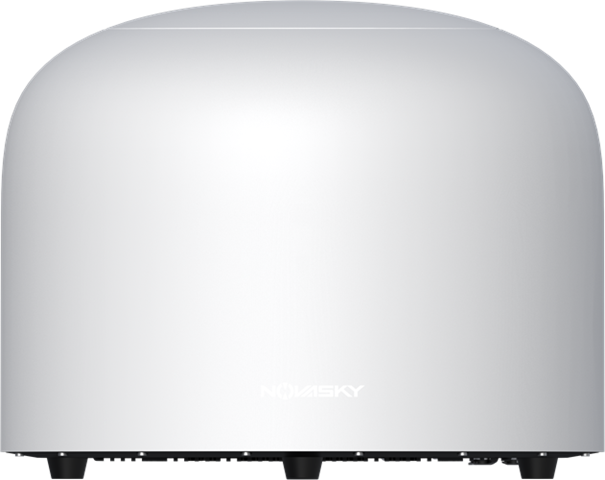

All-round Full-frequency Detection RF Detector

NI-S5000+

The RF detection equipment mainly consists of array antennas, RF circuits, multi-channel synchronous receivers, GNSS positioning modules, etc. The equipment supports amplitude and phase comparison+protocol resolution technology, and has functions such as drone detection and warning, identification of most consumer grade drone models, position resolution, positioning tracking, and trajectory playback.Simultaneously supporting accurate positioning of multiple TDOA stations, it can freely expand any number of detection devices according to the monitoring area range.

Features

  • Full-frequency Detection

    Full-frequency detection can accurately identify most consumer drones, WIFI-type toy drones, DIY FPVs, analog/digital mapping, and more than three hundred drone models.

  • All-weather, All-round

    Suitable for complex electromagnetic and climatic environments, not affected by lightning, hazy weather, night vision, can realize 7 * 24 hours 360 ° all-round real-time monitoring.

  • High Real-time & Low Leakage Rate

    Signal reception, RF and signal processing are completed at the detection front-end, improving the real-time info detection. In addition, unique micro-signal recognition ensures accurate, reliable results and cuts false/missed alarm rates.

  • TDOA+AOA+Protocol Analysis

    Accurately measure the direction of drone targets in a single station, and also locate the position of most drones and corresponding remote controls through protocol analysis, and realize TDOA accurate positioning when deployed in multiple stations.

Product parameters
Detection Coverage Frequency Band300MHz-6GHz
Detection AngleHorizontal 360° omni-directional
Accuracy≤3° (rms)
Detection Radius≥5km (open environment, UAV transmit power 0.1W)
Detection Height≥1000m
Protocol Resolution Positioning Accuracy≤2m
Remote Control Positioning Accuracy≤2m
Multi-station TDOA Positioning AccuracyInside the station ≤ 30m;outside the station ≤ 100m
Power Consumption≤120W
Power Supply RequirementsAC220V±10%, 50Hz
Size≤φ610mm × 440mm
Weight≤16KG
