Continuous Tracking Multi-target Trajectories 2D Phased Array Radar

NI-R5000D

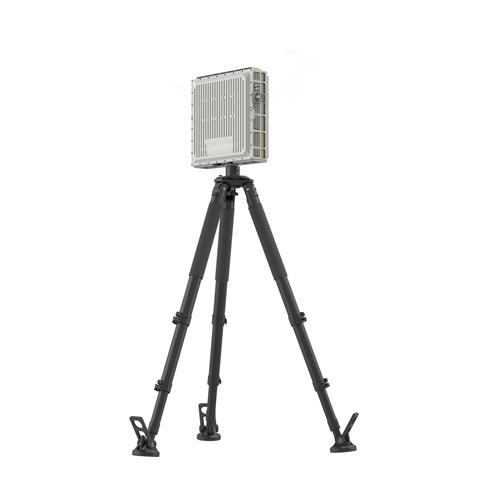

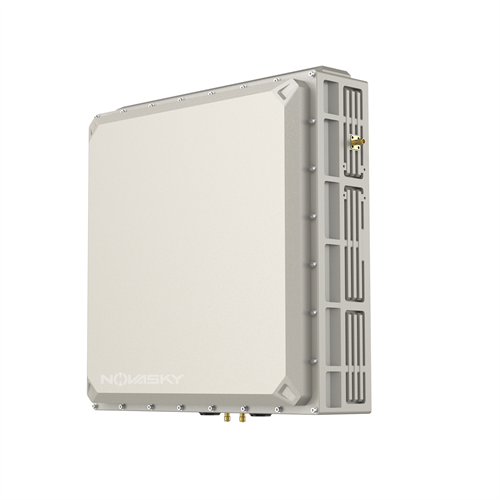

R5000D radar is a high-performance two-dimensional phased array radar designed specifically for the low altitude security field. It adopts advanced phased array technology and intelligent signal processing algorithms to achieve precise detection and tracking identification of low and slow small targets such as micro aircraft and birds within the monitoring range.This radar can flexibly combine 1-4 surfaces to achieve search and tracking of targets in the 90 ° to 360 ° airspace range, and has the ability to simultaneously track multiple targets and target recognition and classification functions.

Features
  • Continuous Tracking Multi-Target Trajectories

    Flexible, agile radar beams and configurable time resources. Improved JPDA & deep learning resolve dense target track confusion. "Gaze mode" for agile targets boosts update rate, ensuring trajectory continuity.

  • Advanced Technological System

    Boasts high detection/recognition capabilities, strong adaptability, and a low false alarm rate for low-altitude, ultra-low-altitude, and slow small targets.

  • Multi-Dimensional Precise Detection

    Excellent low altitude and ultra-low altitude detection performance, capable of achieving multi-dimensional and precise detection of low altitude and ultra-low altitude targets in terms of distance, azimuth, and altitude.

  • Target Recognition Classification

    Integrates target RCS, micro-Doppler features, and motion patterns to build an AI classification model;Precisely differentiates targets (drones, birds, airborne objects)

Product parameters
Frequency BandX band
Detection Distance≥ 5km (drone, RCS: 0.01 ㎡)
Angle Coverage RangeAzimuth: 0 °~90 ° (one set, can cover 360° with four sets) Pitch: -10 ° to 30 °
ResolutionDistance: 15m; speed: 0.2m/s
Speed Measurement Range0.2m/s to 100m/s
Search AccuracyDistance: ≤ 5m, azimuth: ≤ 0.5 °, elevation: ≤ 0.5 °
Close Range Blind Spot150m
