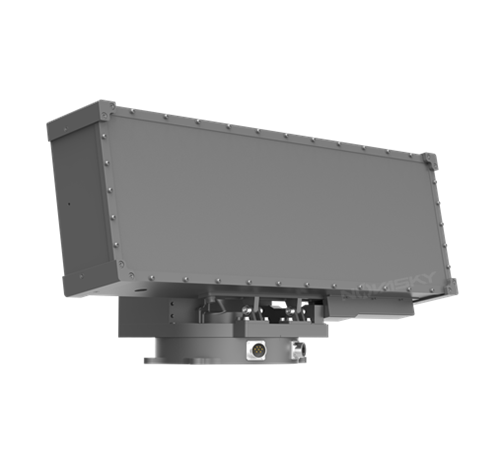

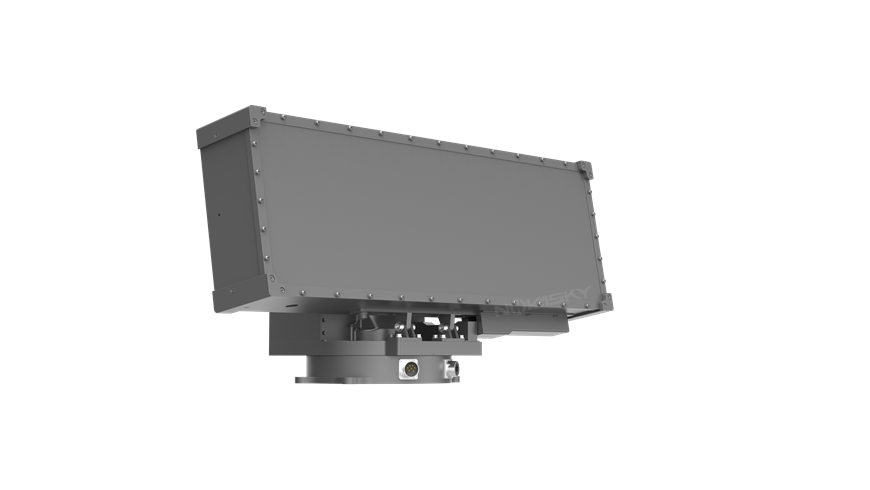

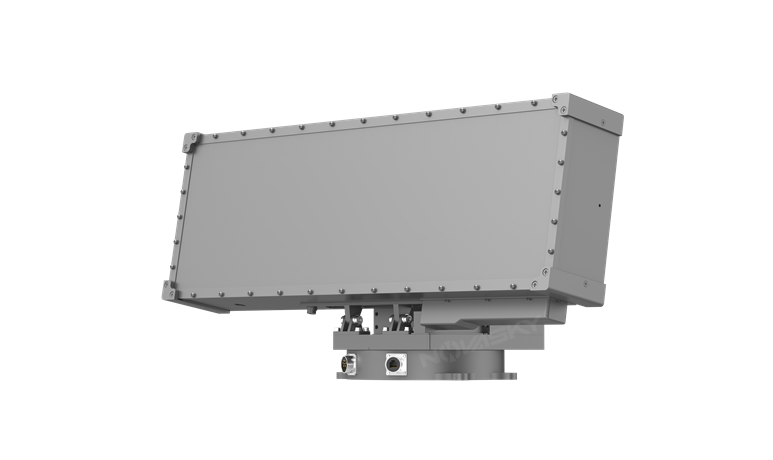

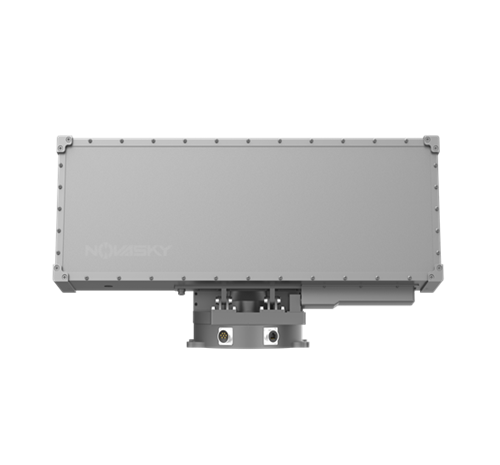

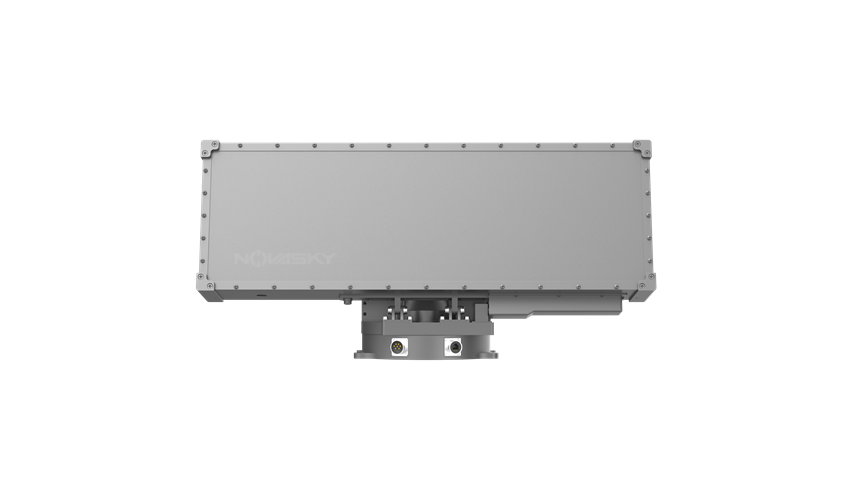

Long-range Detection Active Radar

NI-R5000

NI-R5000 is a set of three-dimensional space surveillance radar with all-round and high-elevation coverage for low-altitude small targets, mainly used to detect and locate low-altitude aircraft. The radar can accurately detect the spatial position of the target, and can be connected to the optoelectronic system and cascaded with countermeasures such as jamming, laser weapons, and navigation spoofers to provide accurate target position information.

Features

  • Long-range Detection

    24/7 all-weather large-region surveillance: Captures aircraft/bird 3D info (azimuth, distance, height) with characteristics of long detection distance, high data rate.

  • Intelligent Classification & Recognition

    The radar supports fully automatic target classification and recognition, which can detect and identify low-altitude small targets with a high probability.

  • High-precision positioning & High Refresh Rate

    Tracks selected targets at high rate, guides precision angle-measuring equipment, and updates positions regularly.

  • Various Deployment

    It can be quickly set up by tripod, fixed pole or vehicle mounted to meet the target detection needs in various application environments.

Product parameters
Working FrequencyKu band
Detection AngleAzimuth angle：0°～360° scanning, Pitch angle 0 °～40 °
Measuring DimensionsDistance/azimuth/pitch angle/speed
Detection Range≥5km(RCS=0.01㎡)
AccuracyDistance accuracy：≤10m；azimuth accuracy：≤0.6°；pitch accuracy：≤0.6°
ResolutionDistance≤30m, azimuth resolution: ≤3°, pitch resolution: ≤9°
Weight≤29kg(excluding tripod)
Size≤800mm×320mm×450mm
Power Consumption≤250W
