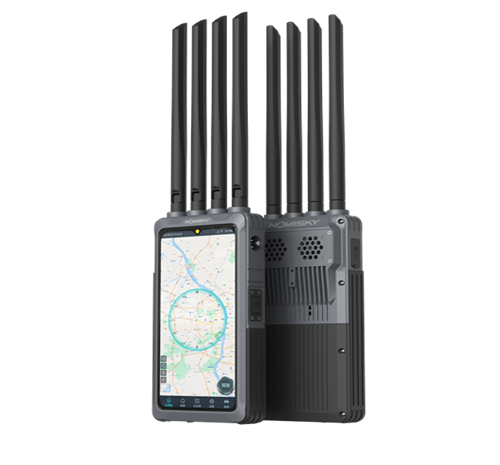

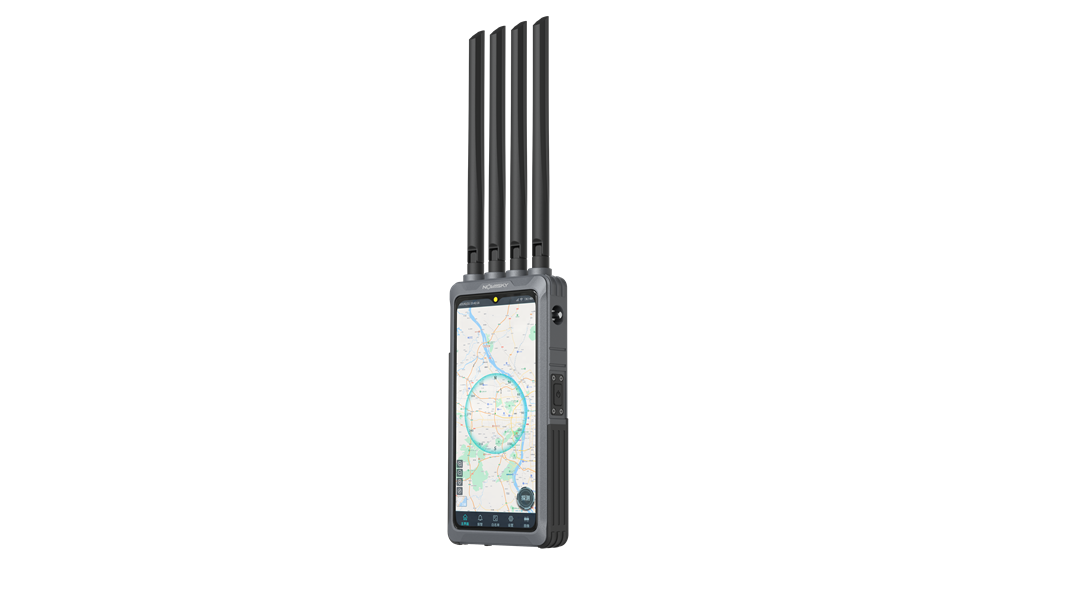

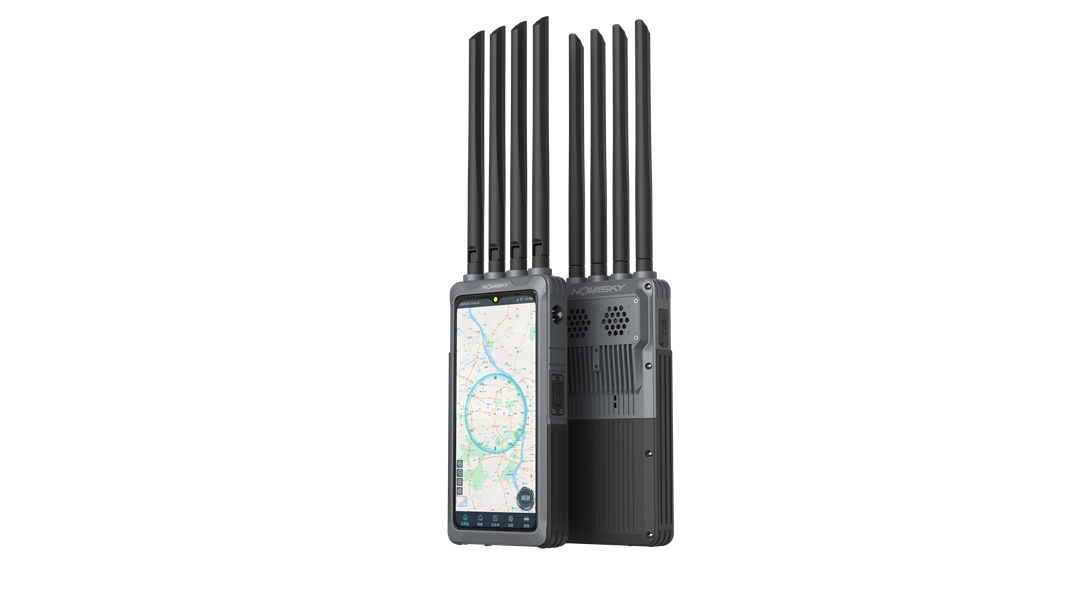

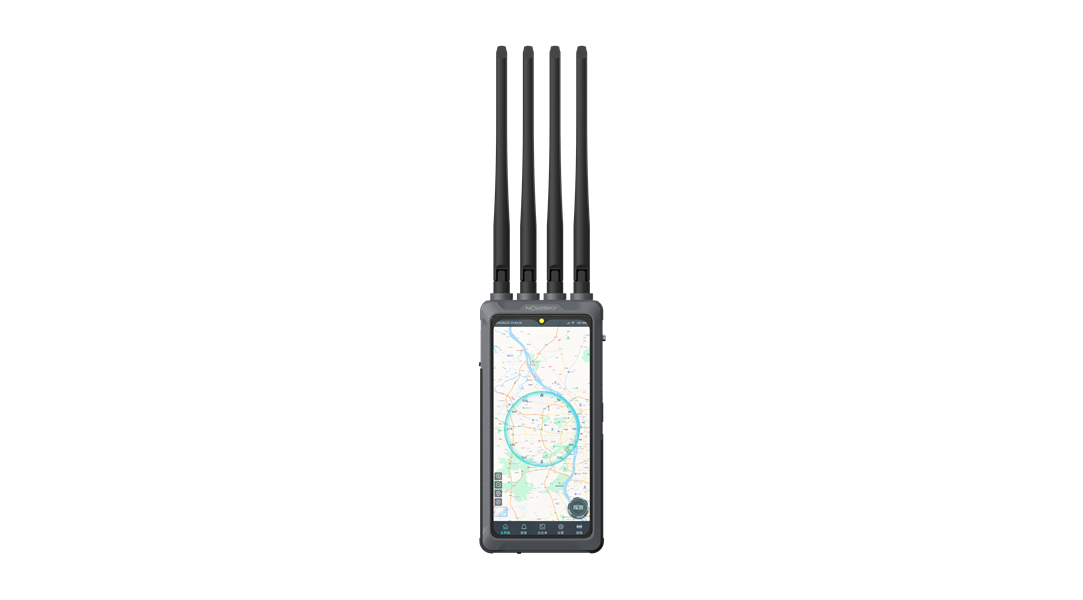

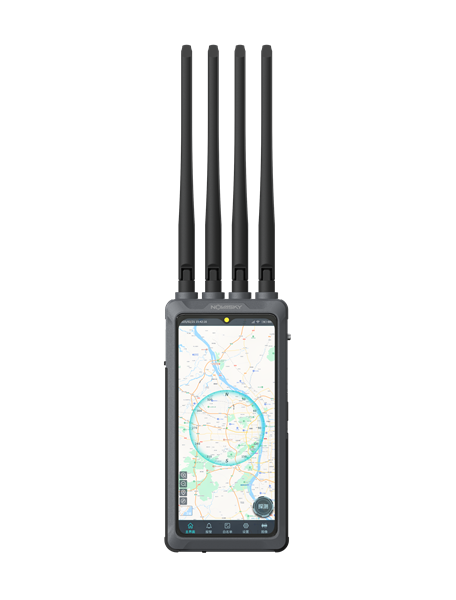

Omnidirectional & Directional Detection Handheld Drone Locator

NI-S2000H

The handheld drone detection and positioning device is mainly used for drone detection and early warning, precise positioning, trajectory tracking and operator positioning. The device supports 300MHz-6GHz full-band detection capabilities, can achieve fast frequency scanning in the full frequency range, suspected target energy detection,and has the ability to crack the protocol of branded drones, and can identify the branded drone's ID, location, altitude and other information. At the same time, the device also supports the image analysis capability of analog image transmission drones.

Features

  • Omni-directional & Directional Detection

    Omnidirectional mode covers mid-range targets 360°, resolving rear blind spots in single-soldier ops and enabling early warning； Directional mode enables long-range detection & target direction-finding in a narrow sector.

  • Protocol Cracking Capability

    Supports protocol decryption for DJI drones (identifying ID, location, altitude) and WIFI Remote ID protocol drones (identifying MAC address). It also features image parsing capability for analog video transmission drones.

  • Single-Machine Positioning

    A single device can realize the location positioning and trajectory display of drone targets and operators (remote controllers).

  • Portability & Ease of Operation

    Features lightweight design for easy portability. Supports offline operation with flexible responsiveness, and can be networked with multiple units to adapt to diverse application scenarios.

Product parameters
Detected Signal TypeDrone data transmission signal, drone remote control signal, drone broadcast signal, drone simulation transmission signal
Detection Frequency Bands300MHz~6GHz
Key Detection Frequency Bands800MHz、900MHz、1.2GHz、1.4GHz、2.4GHz、5.2GHz、5.8GHz
Detection Range≥2km (open environment), 0.5km-1km (suburban environment)
Screen Display ContentDevice self-check status, drone model, frequency band, location, serial number ID, trajectory, etc.
Weight≤600g
