Software-defined Jamming Radio Jammer & Spoofer

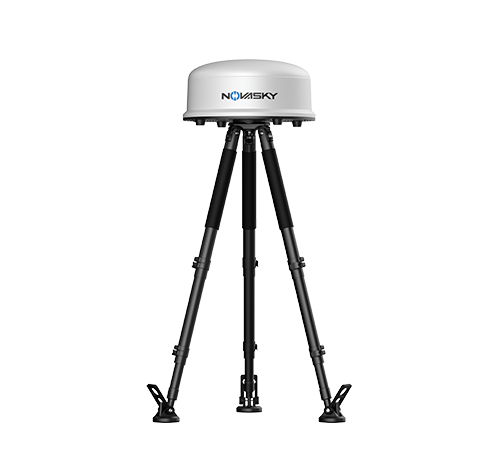

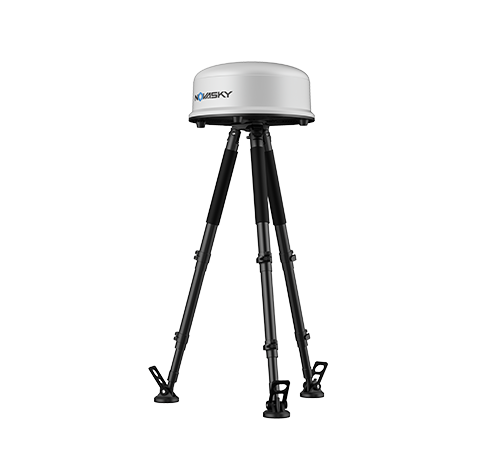

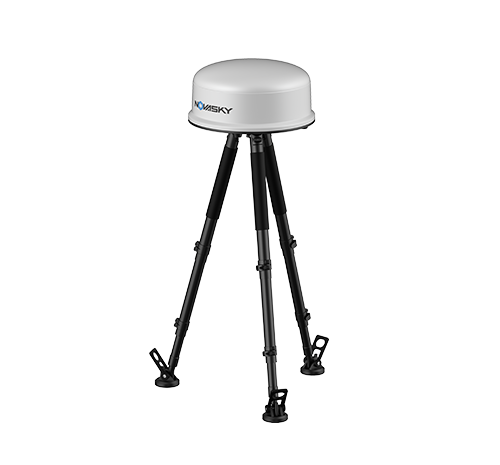

NI-JG5000

Radio Jammer & Spoofer NI-JG5000 integrates radio suppression jamming and navigation spoofing jamming. Among them, the radio suppression jamming unit can software define the jamming source, customize the configuration of jamming frequency points and jamming bandwidth according to the mainstream drone frequency bands, and support the independent or combined output of multiple jamming channels, so as to make the drone link signal lost and produce the effect of driving away or forced landing. The navigation spoofing unit is based on the pseudo-satellite technology radio system, which sends strong satellite signals with false position information to the drone, so that the drone position system is deceived and cannot locate its real position by competing with the satellite signals in orbit.

Features

  • Strong Jamming Capability

    Digital jamming supports FSK, BPS, QPSK, QAM, OFDM, etc., handling consumer/unconventional drones. Over 100W per amplifier ensures countering anti-jamming latest drones.

  • Integrated Design

    Compact & highly integrated；Consists of radio jammer, directional spoofing equipment, intelligent PTZ and bracket.

  • Integrated Spoofing Function

    Supports GPS, BDS, GLONASS and other navigation spoofing signal output; links with radar system, uses radar-sent target guidance info to spoof drones, forcing them to land in designated areas.

  • Software-defined Jamming Radio

    300MHz-6GHz full-band jamming capability, covering most drone communication and navigation frequency bands；Configure key jamming parameters in real time, including common drone frequencies, scanning cycles, signal source styles, and strike duration.

Product parameters

Detection Range

≥2km（0.1W radiation source）

Jamming Frequency Band

Drone image transmission/Data transmission/Remote control frequency band

Jamming Angle

360°omnidirectional

Inteference To Signal Ratio

＞10：1

Jamming Effective Time

≤3s

Communication Interface

1 RJ45、10M/100M/1000M Adaptive Ethernet port

Power Supply

AC220V±10%，50Hz
