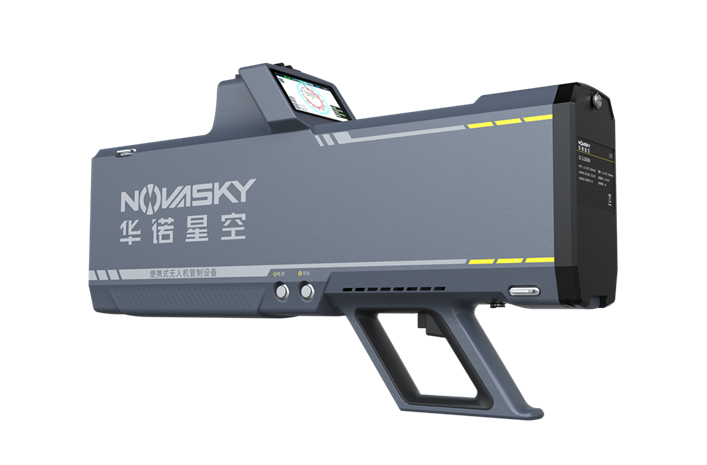

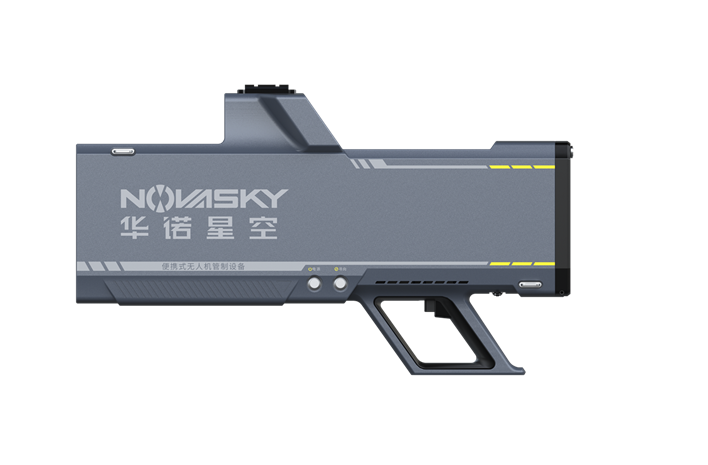

Passive Detection, Long-range Strike Handheld Drone Jammer

NI-SJ2000M

The new generation of portable drone control device is a newly upgraded handheld jammer. The equipment integrates detection, countermeasures, navigation spoofing (optional), command display and control, and can effectively strike new 4G and 5G drone on the market from a long distance, forcing drones to hover, return and drive away, and realize early-warning, in-process disposal and post-event evidence collection of invading drone targets. The equipment is small in size, light in weight, has good maneuverability, and supports multiple devices to form a self-organizing network, and is interconnected with the anti-drone system command and control terminal (APP) and the back-end command and management platform at multiple levels.

Features

  • Passive Detection, Long-range Strike

    300MHz-6GHz full-band detection. Accurately identifies over 100 drone models including most consumer, WIFI toy, DIY flying drones and analog/digital image transmission. Directional jamming antenna enables long jamming distance.

  • Protocol Analysis & Positioning

    Analyzes protocols of detected drones (by OcuSync, WIFI, Bluetooth, etc.) and identifies their model, location, and pilot location.

  • All-in-one Detection, Jamming, Spoofing

    Integrates Radio Detection, Suppression Jamming, Navigation Spoofing(optional); 300MHz-6GHz full-band jamming, intercepts drones (consumer/unconventional) to force hover/return/drive-away.

  • Smart Touch, Easy Operation

    Touchscreen shows drone model, direction, distance, target, etc.; allows adjusting parameters, black/white lists, history data, updates, etc.

Product parameters
Detection Band300MHz~6GHz
Detection Distance ≥3km
Information Display FunctionIt has a built-in 4-inch touch screen display and an extended mobile terminal APP display, which can display target direction, angle, coordinates, frequency band, model, map, interference duration and other information.
Jamming Band300MHz~6GHz frequency band can customize interference channel by software
Jamming Distance≥2km (I/C Ratio 3: 1)
Types of Spoofing SignalsGPS, GLONASS, BDS, Galileo and other commonly used navigation frequency bands
Spoofing Distance（Optional）≥1km
