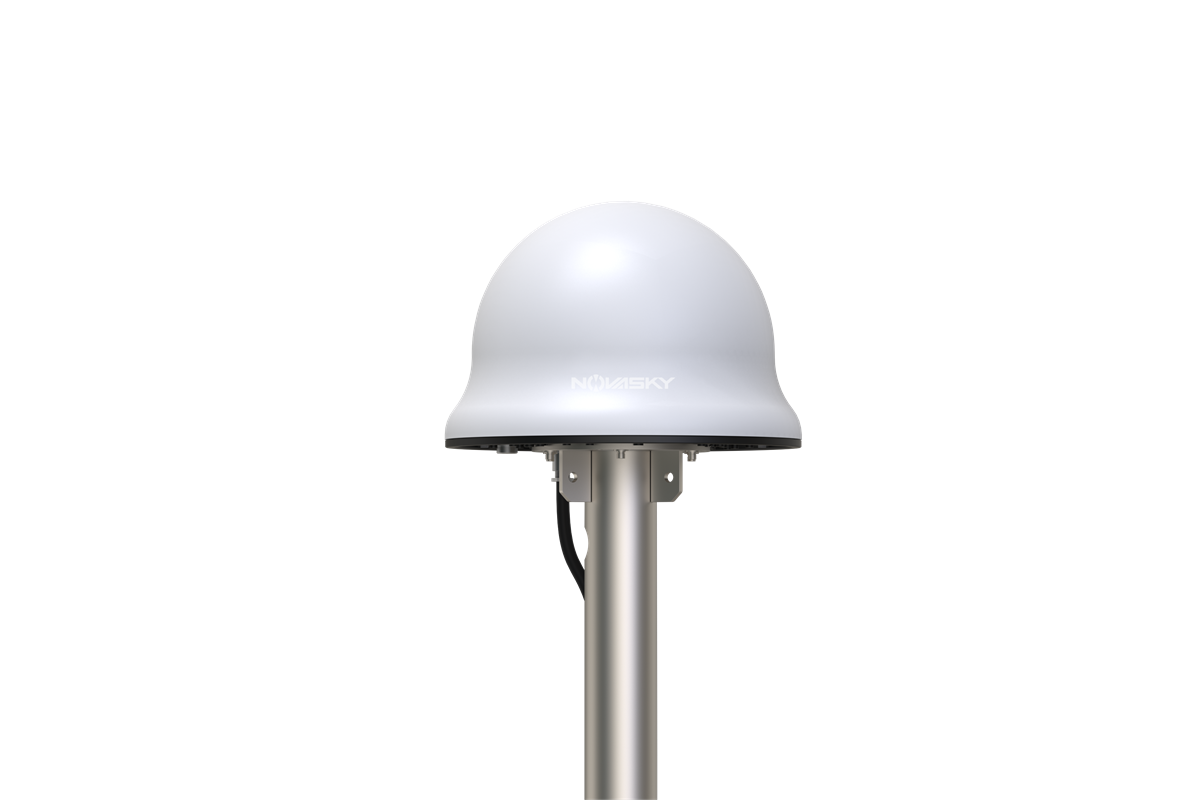

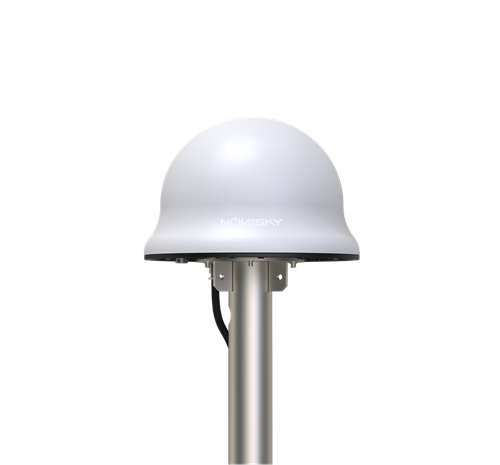

360° Omnidirectional Long-distance Spoofer

NI-G3000

Spoofer NI-G3000 competes with on-orbit satellite signals by emulating and transmitting simulated satellite navigation signals. It utilizes its power advantage to cause the drone navigation system to receive simulated navigation signals with false position information, causing drones entering the control area to become "lost" and unable to follow the intended trajectory, which can have the effect of driving the drone away, forcing it to land, or preventing it from taking off.

Features

  • Integrated Design

    Signal simulation generator, transceiver antenna, control board, power supply unit and other functional units are all integrated in one cavity to realize spoof control.

  • Zoning Control

    360° omnidirectional spoofing, and long-distance spoofing and expulsion of more than 3km can also be achieved by configuring omnidirectional/directional antennas.

  • Adjustable Jamming Distance

    The navigation spoofing range is software-controllable within 3km, and can be flexibly adjusted according to the construction scenario.

  • Easy Installation & Wide Application

    Fixed installation by pole or wall mounting, with regular appearance and good concealment.

Product parameters
Types of Spoofing SignalsGPS, GLONASS, BDS, Galileo and other commonly used navigation frequency bands
Spoofing Distance≥3km, and the distance is adjustable
Orientation360°
Spoofing EffectDispersion, forced landing, flying according to the set trajectory
Equivalent Omnidirectional Radiated Power≤50W, power is adjustable
Effective Time of Spoofing＜15s
Activation Time≤5min
