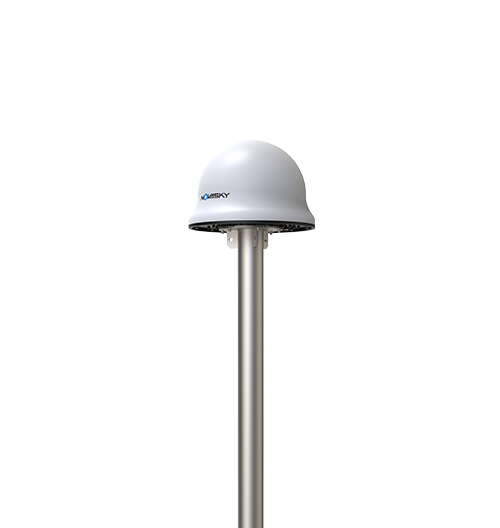

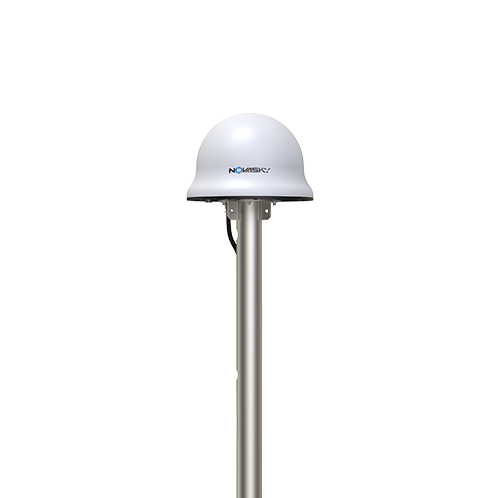

Decoy Active Defense Equipment

SC-G1000

The decoy active defense system transmits simulated satellite navigation signals through simulation, competes with on-orbit satellite signals, and uses the power advantage to enable the drone navigation system to receive simulated navigation signals with false location information, so that the drone entering the control area "Lost", and unable to fly according to the predetermined track. It can make the drone drive away, make a forced landing, or fail to take off.

Features

  • Easy to Install

    Fixed installation by pole or wall hanging, regular shape and good concealment

  • Green Safety

    Signal transmission power of milliwatt level, minimal impact on personnel and electromagnetic environment

  • Partition Control

    360° omnidirectional azimuth to achieve global coverage

  • Integrated Design

    Signal simulation generator, transceiver antenna, control board and other functional units are integrated in one cavity

Product parameters

Detection Distance

≥500m，1000m≤ adjustable

Detection Frequency Band

Drone navigation band

Detection Angle

Omnidirectional 360° (no blocked)

Protection Class

Ex d IIC T6 Gb

Communication Interface

Ethernet

Power Supply

AC220V±10%，50Hz
