Three Dimensional Imaging Through Wall Radar

CEM400

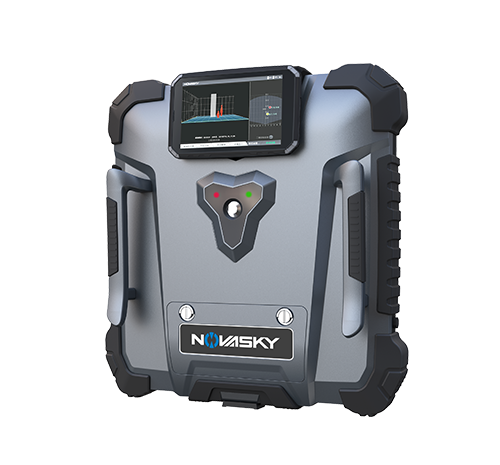

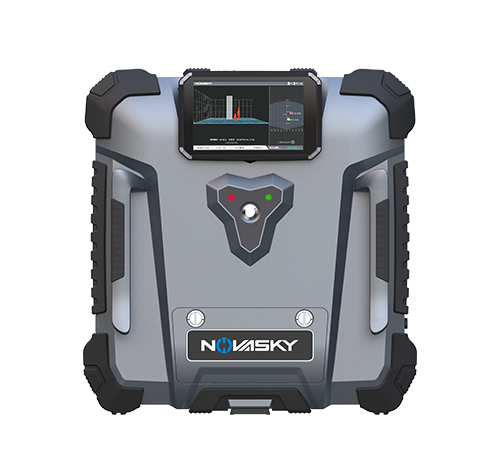

Three Dimensional Imaging Through Wall Radar CEM400 is a 3D imaging penetrating reconnaissance equipment, which can penetrate non-metallic obstacles such as building walls to detect multiple personnel targets behind it, and quickly obtain information such as 3D imaging, 2D coordinates, attitude, quantity of targets and indoor structure.

Features

  • Strong Penetration

    Reliable penetration detection of common non-metallic building wall materials

  • Indoor Structure Simulation Reconstruction

    It can simultaneously detect and display strong reflector obstacles such as walls and large-area metal products behind the obstacles

  • Multi-target Real-time Positioning

    It has real-time detection and 3D imaging and positioning capabilities of moving and static multi-targets, and obtains target information

  • Intelligent Recognition

    Intelligently identify the moving and static states of the target, as well as the standing, squatting and other postures of the target

  • 3D Imaging

    Adopt MIMO architecture design, with 3D stereoscopic imaging capability

Product parameters
Radar SystemUltra-Wideband Radar with MIMO Architecture

Operation Method

Handheld detection or tripod support remote display and control

Detection Mode

Real-time 3D imaging and positioning, simultaneous detection of moving and static multi-targets

Detection Angle

120°
